Compact blasting cabinet for rust removal, deburring, paint stripping, and finishing needs. Enclosed dust-free system supports abrasive recovery, clear visibility, operator safety, and efficient processing of small to medium industrial components.

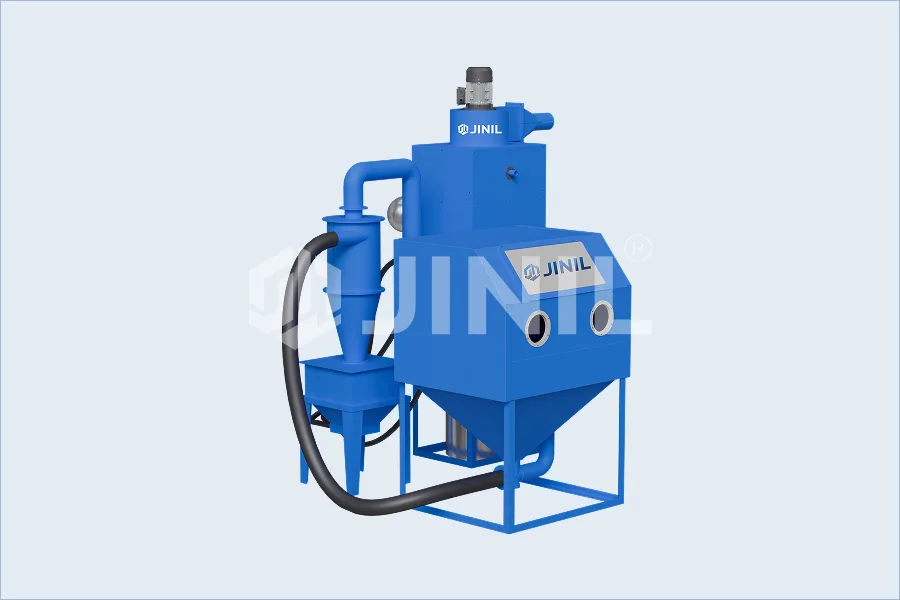

The Air-Operated Shot Blasting Cabinet – Suction Type is a compact and economical cabinet-type sandblasting machine designed for cleaning, surface preparation, deburring, and finishing of small to medium-sized components. It operates on the Venturi suction principle, where compressed air creates a vacuum that draws abrasive media from the hopper and propels it through the blasting nozzle onto the workpiece.
This suction-type shot blasting machine is widely used in the automobile, aerospace, foundry, fabrication, and engineering industries for efficient surface treatment processes. Its enclosed cabinet design supports dust-controlled operation, improved abrasive recycling, and better operator safety, making it an ideal solution for workshops and production environments seeking reliable blasting performance.
Smart Process Overview
The machine works on the Venturi suction mechanism. Compressed air passes through the blasting gun nozzle at high speed, creating a vacuum that pulls abrasive media from the hopper into the airstream. This mixture of air and abrasive is then directed onto the job surface for cleaning, finishing, or coating preparation.
After blasting, reusable abrasive falls back into the hopper for reuse, while dust and fine particles are extracted through the integrated dust collector system. This continuous process ensures consistent blasting quality, efficient abrasive recovery, and minimal media loss, making it a practical industrial sand blasting machine for daily operations.
Built With Precision Components
Blasting Cabinet
Heavy-duty fabricated steel cabinet with wear-resistant rubber lining for long service life in demanding industrial use.
Blasting Gun Assembly
High-performance suction blasting gun fitted with tungsten carbide or boron carbide nozzle for reliable blasting efficiency.
Abrasive Hopper
Bottom hopper designed for continuous abrasive collection, recovery, and reuse.
Work Handling System
Perforated work grate or optional rotating turntable for convenient and uniform blasting of components.
Dust Collection Unit
Cartridge or bag filter type dust collector for improved visibility and cleaner working conditions.
Inspection Window
Large viewing window with replaceable toughened glass and protective film.
Hand Gloves
Heavy-duty rubber gloves are mounted on the cabinet for safe and comfortable operation.
Foot Pedal Control
Operator-controlled blasting start and stop system for efficient handling and process control.
Engineered Output Parameters
| Machine Type | Suction / Venturi Blasting Cabinet |
|---|---|
| Cabinet Construction | MS fabricated with rubber lining |
| Working Pressure | 5 – 7 bar |
| Air Consumption | 12 - 30 CFM (depending on nozzle size) |
| Nozzle Size | 4 – 8 mm |
| Abrasive Type | Aluminium Oxide / Garnet / Glass Beads / Steel Grit |
| Dust Collector | Cartridge / Bag Filter Type |
| Electrical Supply | 415V, 3 Phase, 50Hz |
| Cabinet Lighting | LED / Fluorescent Dust-proof |
Explore a wide range of industries where shot blasting plays a critical role in improving surface quality, durability, and production efficiency. From automotive and foundry to fabrication and heavy engineering, Jinil's solutions are designed to meet diverse application needs, ensuring reliable surface preparation, consistent finishing, and optimized performance across demanding industrial environments.
Complete Support Portfolio
The Air-Operated Shot Blasting Cabinet – Suction Type is suitable for multiple blasting and finishing applications where precision surface treatment is required.
Rust removal machine for metal parts
Surface cleaning before painting or powder coating
Paint and coating removal
Deburring of machined parts
Surface roughening before plating or coating
Decorative satin finishing
Tool and mould cleaning
Cleaning precision engineering components
Operational Performance Benefits
The suction blast machine offers several benefits for industrial users looking for an economical and dependable solution.
Rotates components during blasting to ensure uniform abrasive coverage, improved cleaning consistency, and easier handling of parts.
Converts suction blasting setup into a higher-pressure operation for faster cleaning rates and stronger abrasive impact performance.
Separates reusable abrasive from dust and broken particles, improving media quality and blasting efficiency during operation.
Moves the blasting gun automatically in controlled motion for consistent coverage and reduced manual operator effort.
Automates machine functions through programmable controls for easier operation, repeatable performance, and process monitoring.
High wear-resistant nozzle designed for extended service life and efficient abrasive acceleration during blasting.
Provides enhanced internal cabinet visibility for safer operation and more accurate blasting of components.
Cabinet size can be customized to suit specific component sizes, production needs, and workspace requirements.
An Air-Operated Shot Blasting Cabinet – Suction Type is an enclosed blasting system that uses compressed air to draw abrasive media through a suction gun for cleaning, deburring, and surface finishing of components.
A suction-type shot blasting machine is used for rust removal, paint stripping, surface preparation, deburring, and decorative finishing of small to medium-sized industrial components.
Industries such as automobile, aerospace, fabrication, foundry, valve manufacturing, engineering workshops, and maintenance facilities commonly use cabinet-type sandblasting machines.
Common abrasives include aluminum oxide, glass beads, steel grit, garnet, and other compatible blasting media, depending on cleaning or finishing requirements.
Yes, it works effectively as a rust removal machine, removing oxidation, paint, scale, and contaminants from metal surfaces.
The integrated dust collector removes dust and broken abrasive particles during blasting, improving visibility, cleanliness, and operator safety.
Yes, optional features such as turntables, reciprocators, upgraded nozzles, PLC controls, and custom cabinet sizes can be provided.
A suction blasting cabinet provides enclosed, cleaner, safer, and more economical blasting with better abrasive recovery and controlled finishing results.
