Diabola conveyor system rotates pipes and round jobs during blasting for complete outer surface cleaning. Continuous handling improves productivity and ensures even blasting results.

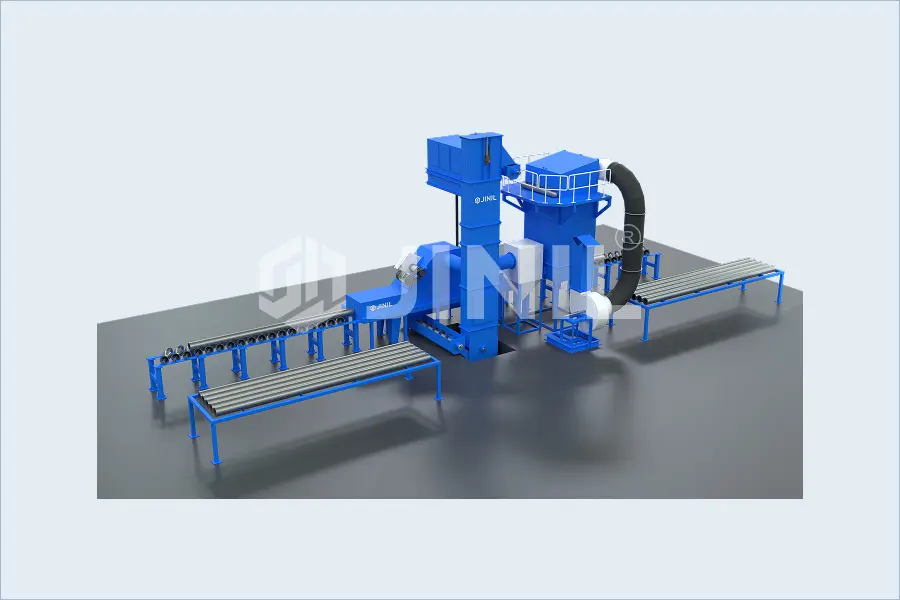

The Airless Shot Blasting Machine – Diabola Conveyor Type is a continuous, high-production system designed for cleaning pipes, round sections, cylindrical jobs, and long components requiring rotational blasting. Components pass through the blasting chamber on a conveyor system while multiple blast wheel units ensure complete and uniform surface cleaning in a single pass.
This configuration uses specialized diabolo rollers to rotate round jobs during blasting, allowing full circumferential coverage. It is ideal for industries requiring fast throughput, reliable surface preparation, and automated handling of pipes or cylindrical components.
Available ConfigurationsFor Round, cylindrical, and spherical parts
Smart Process Overview
Components are loaded onto the inlet conveyor and moved into the blasting chamber. Inside the tunnel, multiple high-speed shot blasting turbine units positioned at optimized angles project abrasive media onto the surface.
For pipes and round jobs, the diabolo rollers rotate the component during movement, ensuring continuous exposure of the full outer surface to the abrasive stream. This enables uniform cleaning, rust removal, and scale removal around the entire circumference.
Used abrasive falls into the hopper and is recovered through screw conveyors, bucket elevator, and air wash separator for reuse. Dust and fine particles are extracted through the integrated dust collector system. Cleaned components exit through the outlet conveyor ready for coating or further processing.
Built With Precision Components
Blast Wheel Units
10 HP to 30 HP high-efficiency turbines arranged in multi-wheel configuration for full blasting coverage.
Blasting Chamber (Tunnel)
Heavy-duty chamber with manganese steel liners and replaceable wear plates.
Conveyor System
Diabolo roller conveyor system designed for rotating pipes and round jobs with VFD-controlled speed.
Abrasive Circulation System
Includes longitudinal and cross screw conveyors, bucket elevator, and air wash separator for abrasive recovery.
Dust Collection System
Bag filter or cartridge type dust collector with pulse jet cleaning system.
Sealing System
Rubber curtains at entry and exit to prevent abrasive leakage.
Electrical Control Panel
PLC-based system with interlocks and safety controls.
Custom Engineered Mechanism
The Diabolo Type configuration uses specially inclined rollers to support and rotate pipes or round jobs automatically during blasting. This controlled rotation allows the abrasive stream to reach all outer surfaces evenly while the component moves through the machine.
It is ideal for pipes, cylinders, and round sections requiring full circumferential cleaning with continuous production flow. Its automated handling and uniform blasting quality make it a preferred solution for pipe processing industries.
The Airless Shot Blasting Machine – Diabola Conveyor Type is ideal for continuous mass production of pipes and cylindrical jobs requiring complete rotational blasting. It offers high efficiency, repeatable blasting quality, and smooth conveyorized handling.
Its synchronized roller movement and easy integration with automatic coating lines make it a preferred solution for modern pipe processing facilities.
Explore a wide range of industries where shot blasting plays a critical role in improving surface quality, durability, and production efficiency. From automotive and foundry to fabrication and heavy engineering, Jinil's solutions are designed to meet diverse application needs, ensuring reliable surface preparation, consistent finishing, and optimized performance across demanding industrial environments.
Complete Support Portfolio
The Diabola Conveyor Type machine is suitable for continuous blasting of cylindrical and long components.
External blasting of pipes
Cleaning of cylindrical sections
Rust and scale removal from round jobs
Surface preparation before painting
Pre-treatment before coating or galvanizing
Cleaning of long fabricated tubular components
Operational Performance Benefits
The Airless Shot Blasting Machine – Diabola Conveyor Type offers several productivity and handling benefits.
Advanced Engineering Highlights
Customization options are available based on production requirements.
Additional System Enhancements
Enables centralized control, real-time monitoring, process automation, and improved operational efficiency across the entire blasting system.
Allows adjustable conveyor speed to match production requirements, ensuring optimal blasting time and consistent surface finishing quality.
Reduces manual handling by automating material movement, improving productivity, safety, and cycle time efficiency.
Separates contaminants from reusable abrasive media, ensuring consistent blasting performance and extended abrasive life.
Monitors abrasive levels in real time to maintain uninterrupted operation and prevent process inefficiencies.
Automatically maintains required abrasive levels, ensuring continuous blasting without manual intervention or downtime.
Enhances safety by preventing sparks from entering the dust collection system while maintaining a clean working environment.
Removes residual dust and abrasive from components after blasting, ensuring a clean and ready-to-process surface.
Regulates abrasive flow automatically for consistent blasting intensity and optimized media consumption.
Reduces operational noise levels, improving workplace safety and compliance with industrial noise standards.
Aligns blasting operations with coating processes, enabling seamless integration and continuous production flow.
It is a conveyorized blasting machine designed for pipes and round jobs using diabolo rollers that rotate components during blasting.
Pipes, cylindrical sections, tubes, round steel jobs, and long tubular fabricated components are ideal for this machine.
Diabolo rollers rotate round components during blasting to ensure full circumferential cleaning and uniform surface preparation.
Common abrasives include steel shot, steel grit, and other suitable industrial blasting media.
Oil & gas pipelines, steel fabrication, shipbuilding, wind energy, construction, railways, and heavy engineering industries use these systems.
Yes, it includes screw conveyors, bucket elevator, and separator systems for continuous abrasive recovery and reuse.
Yes, it can be synchronized with painting, coating, and primer application lines.
Yes, options such as SCADA controls, heavy-duty rollers, automatic loading systems, soundproofing, and primer line integration are available.
