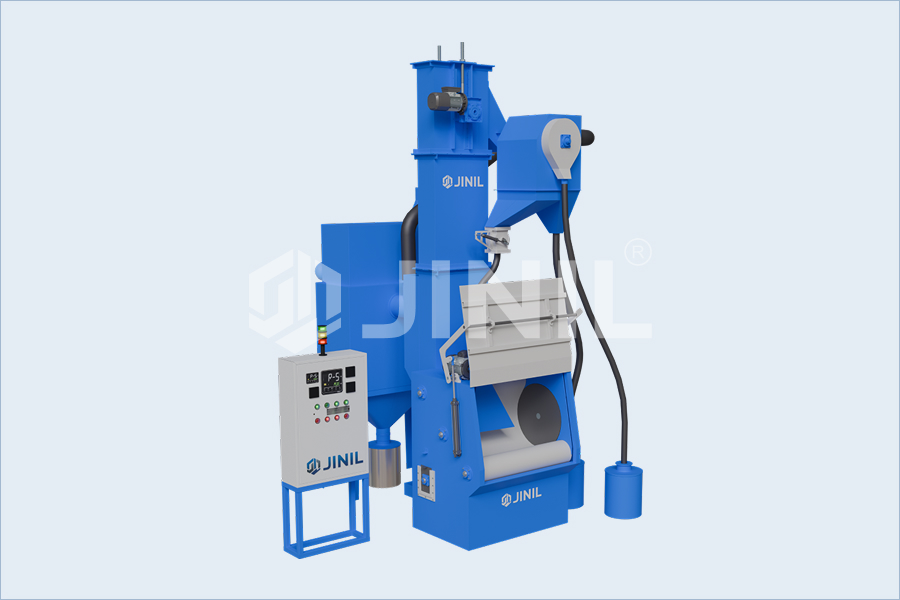

Home / Airless Shot Blasting Machines / Airless Shot Blasting Machine - Tumble Type
Tumble-type machine designed for batch blasting of small to medium components. Continuous tumbling action ensures full coverage, efficient cleaning, and cost-effective mass production processing.
The Airless Shot Blasting Machine – Tumble Type is designed for batch processing of small to medium-sized components requiring uniform cleaning, descaling, deburring, and shot peening. This highly efficient tumblast shot blasting machine uses continuous tumbling action to rotate components inside the blasting chamber while high-speed blast wheels project abrasive media across all exposed surfaces.
The tumbling movement ensures complete 360° blasting coverage, making it ideal for mass production parts requiring consistent finish quality. This tumble-type airless shot blasting machine is available in multiple configurations to suit different applications and component types.
Available ConfigurationsSmart Process Overview
Components are loaded into the tumbling chamber, which may be a drum, rubber belt, or metallic belt design depending on the machine configuration. Once loaded, the chamber rotates continuously, creating a cascading movement that turns and repositions the parts during operation.
High-speed blast wheel units accelerate abrasive media such as steel shot or steel grit and project it onto the tumbling components. As the parts keep rotating, all surfaces are exposed to the abrasive stream for uniform cleaning and finishing.
Used abrasive falls into the recovery system, where it passes through the screw conveyor, bucket elevator, and separator. Clean abrasive is recirculated for reuse, while dust and fines are removed through the integrated dust collector system. Finished components are discharged manually, hydraulically, or automatically, depending on the selected system.
Built With Precision Components
Blast Wheel Unit
High-efficiency shot blasting turbine ranging from 7.5 HP to 30 HP with replaceable control cage and blades.
Tumbling System
Available in drum type, rubber belt type, or steel belt design based on component handling needs.
Abrasive Circulation System
Includes screw conveyor, bucket elevator, and air wash separator for continuous abrasive recovery and reuse.
Dust Collection System
Cartridge or bag filter type dust collector for pollution control and cleaner operation.
Loading & Unloading System
Manual, hydraulic, or automatic discharge options based on production requirements.
Electrical Control Panel
PLC or relay-based panel with interlocks and operational safety systems.
Wear Protection Liners
Manganese steel or replaceable liners to protect machine internals from abrasive wear.
The Airless Shot Blasting Machine – Tumble Type is a proven solution for mass production components requiring reliable and uniform blasting performance. It offers flexible chamber configurations for different materials and part sizes while maintaining low maintenance requirements.
The machine is compatible with garnet, steel shot, and steel grit media, making it suitable for a wide range of cleaning and finishing applications. Custom-built solutions can also be provided based on production requirements.
Explore a wide range of industries where shot blasting plays a critical role in improving surface quality, durability, and production efficiency. From automotive and foundry to fabrication and heavy engineering, Jinil's solutions are designed to meet diverse application needs, ensuring reliable surface preparation, consistent finishing, and optimized performance across demanding industrial environments.
Complete Support Portfolio
The tumble-type shot blasting machine is suitable for multiple industrial finishing and cleaning operations.
Descaling of forged and heat-treated parts
Rust removal from castings
Deburring of machined components
Shot peening for fatigue life improvement
Surface preparation before painting or coating
Cleaning of fasteners, springs, and gears
Operational Performance Benefits
The Airless Shot Blasting Machine – Tumble Type offers several operational benefits.
Advanced Engineering Highlights
Optional customization can be provided based on specific production needs.
Additional System Enhancements
Provides automated process control, real-time monitoring, and simplified machine operation for improved productivity and efficiency.
Variable Frequency Drive (VFD)
Automates component loading to reduce manual handling, improve safety, and increase production efficiency.
Removes unwanted contaminants from abrasive media to maintain blasting quality and extend abrasive usability.
Continuously monitors abrasive quantity to ensure uninterrupted blasting and stable operational performance.
Reduces operational noise levels, creating a safer and more comfortable industrial working environment.
Prevents sparks from entering the dust collection system while maintaining clean and safe machine operation.
Removes residual abrasive and dust from components after blasting for a cleaner finished surface.
Protects sensitive components from impact damage during blasting while maintaining effective cleaning performance.
Automatically regulates abrasive flow for uniform blasting intensity and optimized abrasive consumption.
Stores preset blasting parameters for repeatable operation, faster setup, and consistent production quality.
A tumble-type airless shot blasting machine is a batch blasting system where components tumble continuously inside a chamber while abrasive media is projected by blast wheels for uniform cleaning.
It is ideal for fasteners, springs, gears, castings, forgings, machined parts, and other small to medium-sized components.
Drum-type machines use a rotating drum, while belt-type machines use rubber or steel belts for tumbling and handling components.
Common abrasives include steel shot, steel grit, garnet, and other suitable media, depending on the application.
Automotive, foundry, aerospace, fasteners, railways, valve manufacturing, and heat treatment industries commonly use these machines.
The machine can be supplied with manual, hydraulic, or automatic loading and unloading systems with PLC automation options.
Yes, the machine includes a recovery system with conveyor, elevator, and separator for continuous abrasive reuse.
Yes, custom options such as VFD drives, loading systems, soundproofing, sensors, and heat-resistant designs can be provided.
