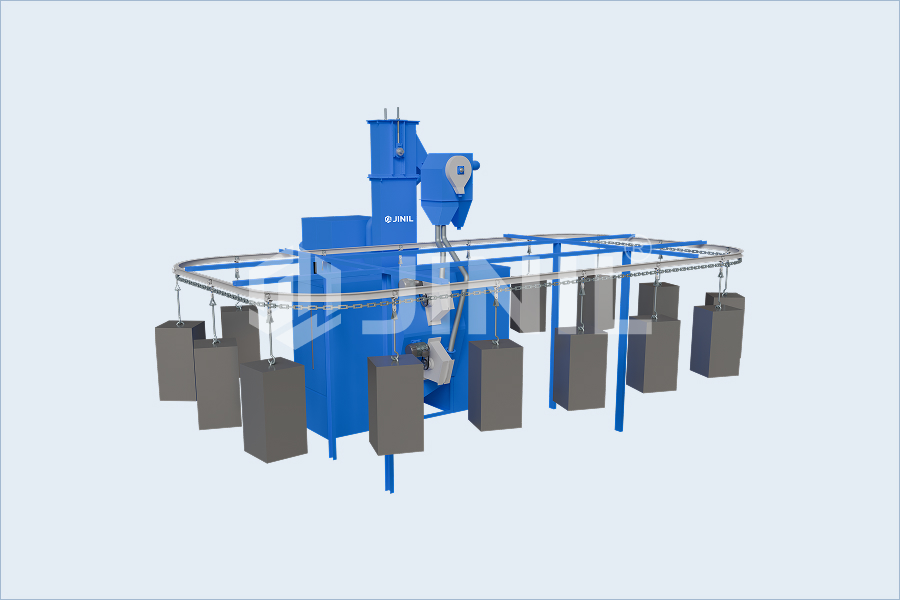

Closed loop conveyor hanger machine designed for uninterrupted cleaning of suspended components with uniform blasting coverage. Automated movement, reduced manual handling, and efficient abrasive recovery ensure high-productivity surface preparation performance.
The Airless Shot Blasting Machine – Hanger Type with Closed Loop Conveyor is designed for cleaning, descaling, and surface preparation of medium to large fabricated components that cannot be processed in tumbling systems. Components are suspended on hooks or fixtures and exposed to high-velocity abrasive media from multiple blast wheel units for uniform cleaning without damage.
This closed loop conveyor shot blasting machine is ideal for continuous production environments where components require automated movement through blasting stages with high productivity and consistent finishing quality.
Available Configurations
Smart Process Overview
Components are mounted on hangers or hooks attached to the closed loop conveyor system. The conveyor moves jobs automatically into the blasting chamber where high-speed shot blasting turbine units project abrasive media such as steel shot or steel grit onto the surfaces.
During blasting, the components rotate or move continuously to ensure complete coverage from all sides. Used abrasive is collected in the hopper and transferred through the screw conveyor, bucket elevator, and air wash separator for reuse.
Dust and fine particles are removed through the integrated dust collector system. Cleaned components exit the machine automatically and proceed to the next manufacturing process.
Built With Precision Components
Blast Wheel Units
7.5 HP to 30 HP high-efficiency turbines for strong abrasive throwing performance.
Blasting Chamber
Heavy-duty chamber with manganese steel or rubber-lined wear plates and replaceable liners.
Closed Loop Conveyor System
Continuous chain conveyor with hook capacity from 250 kg to 5 MT for automated component movement.
Rotation Mechanism
Job rotation system operating typically between 2 to 6 RPM for uniform blasting exposure.
Abrasive Circulation System
Includes screw conveyor, bucket elevator, and air wash separator for abrasive recovery.
Dust Collector
Bag filter or cartridge type dust collector with pulse jet cleaning system.
Electrical Control Panel
PLC-based or conventional panel with operational controls and safety interlocks.
Safety System
Door interlocks and emergency stop system for operator safety.
Engineered Output Parameters
| Model | HT-250 | HT-500 | HT-1000 | HT-2000 | HT-5000 |
|---|---|---|---|---|---|
| Hook Capacity | 250 kg | 500 kg | 1 MT | 2 MT | 5 MT |
| Job Size (mm) | 800 × 1200 | 1000 × 1500 | 1500 × 2000 | 2000 × 2500 | Custom |
| Blast Wheels | 2 × 7.5 HP | 2 × 10 HP | 2 × 15 HP | 3 × 20 HP | 4 × 20 HP |
| Total Power | 20–25 kW | 30–40 kW | 50–60 kW | 80–100 kW | 120–160 kW |
| Production | 5–10 jobs/hr | 8–15 jobs/hr | 10–20 jobs/hr | 15–25 jobs/hr | Custom |
Custom Engineered Mechanism
The Continuous Closed Loop Type uses a fully automatic conveyor system to move components through the blasting chamber in a continuous production cycle. It is designed for uninterrupted processing, reduced manual handling, and consistent blasting quality across high-volume operations.
This configuration integrates easily with painting and coating lines, making it ideal for mass production industries requiring automated material flow. Its efficient conveyor movement and repeatable surface finishing make it a preferred solution for modern manufacturing plants.
The Airless Shot Blasting Machine – Hanger Type with Closed Loop Conveyor is the best solution for non-tumbling components requiring continuous automated blasting. It ensures uniform, high-quality surface finish while handling heavy and delicate fabricated parts safely.
Its modular design supports future expansion and delivers proven performance in heavy industries with continuous production demands.
Explore a wide range of industries where shot blasting plays a critical role in improving surface quality, durability, and production efficiency. From automotive and foundry to fabrication and heavy engineering, Jinil's solutions are designed to meet diverse application needs, ensuring reliable surface preparation, consistent finishing, and optimized performance across demanding industrial environments.
Complete Support Portfolio
The hanger type shot blasting machine is suitable for medium to large components requiring continuous suspended blasting.
Surface cleaning of fabricated structures
Descaling of welded assemblies
Rust removal from heavy components
Pre-treatment before painting or galvanizing
Shot peening of critical parts
Cleaning of castings and forgings
Operational Performance Benefits
The Airless Shot Blasting Machine – Hanger Type with Closed Loop Conveyor offers several production benefits.
Advanced Engineering Highlights
Customization options can be provided based on specific production requirements.
Additional System Enhancements
Provides centralized control, real-time monitoring, and process automation for improved efficiency and system visibility.
Adjusts conveyor speed to match production needs, ensuring consistent blasting quality and optimized processing time.
Ensures uniform exposure of all surfaces by rotating components during blasting for consistent cleaning results.
Removes contaminants from abrasive media, maintaining quality, improving performance, and extending media life.
Continuously monitors abrasive levels to ensure uninterrupted operation and consistent blasting performance.
Maintains required abrasive levels automatically, reducing downtime and ensuring continuous blasting efficiency.
Minimizes operational noise levels, improving workplace safety and ensuring compliance with industrial standards.
Prevents sparks from entering the dust system while maintaining a clean and safe working environment.
Removes residual dust and abrasive from components after blasting, ensuring a clean and ready surface.
Measures load weight accurately to maintain balanced operation and ensure safe handling of components.
Enables real-time system tracking, performance monitoring, and predictive maintenance through connected digital systems.
It is a continuous blasting machine where components are suspended on hooks and moved through the blasting chamber on a closed loop conveyor.
Fabricated structures, heavy machinery parts, automotive components, castings, forgings, and irregular shaped components are ideal for this machine.
It enables continuous production, automatic movement of jobs, reduced manual handling, and higher productivity.
A hanger type shot blasting machine is best for components that cannot tumble and require damage-free suspended blasting.
Common abrasives include steel shot, steel grit, and other suitable blasting media depending on the application.
Structural fabrication, automotive, railways, defense, oil & gas, wind energy, and heavy engineering industries commonly use these systems.
Yes, it includes screw conveyors, bucket elevator, and separator systems for continuous abrasive recovery and reuse.
Yes, options such as SCADA controls, tilting hangers, weighing systems, soundproofing, and line integration are available.
