Closed loop conveyor hanger machine designed for uninterrupted cleaning of suspended components with uniform blasting coverage. Automated movement, reduced manual handling, and efficient abrasive recovery ensure high-productivity surface preparation performance.

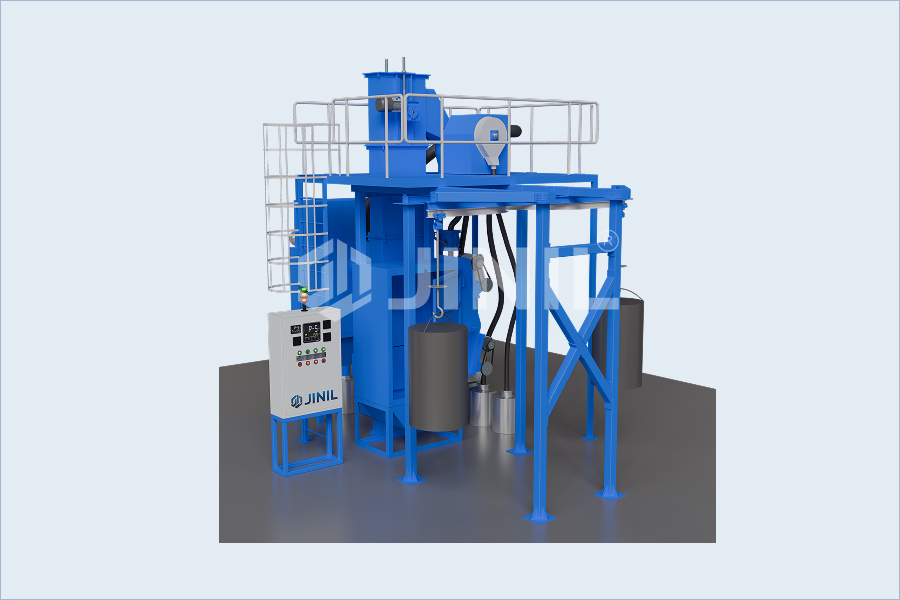

The Airless Shot Blasting Machine – Hanger Type Y Conveyor is designed for cleaning, descaling, and surface preparation of medium to large fabricated components that cannot be processed in tumbling systems. Components are suspended on hooks or fixtures and exposed to high-velocity abrasive media from multiple blast wheel units, ensuring uniform cleaning without damage.
This Y conveyor shot blasting machine uses an indexing conveyor arrangement that moves hangers through loading, blasting, and unloading positions efficiently. It is ideal for controlled production flow, faster cycle management, and consistent finishing of irregular or heavy components.
Available ConfigurationsSmart Process Overview
Components are mounted on hangers or hooks attached to the Y conveyor system. The indexed conveyor moves jobs step-by-step into the blasting chamber where high-speed shot blasting turbine units project abrasive media such as steel shot or steel grit onto the surfaces.
During blasting, the components rotate or reposition to ensure complete coverage from all sides. Used abrasive is collected in the hopper and transferred through the screw conveyor, bucket elevator, and air wash separator for reuse.
Dust and fine particles are removed through the integrated dust collector system. After cycle completion, the conveyor indexes the cleaned component to the unloading station and moves the next job into position.
Built With Precision Components
Blast Wheel Units
7.5 HP to 30 HP high-efficiency turbines for strong abrasive throwing performance.
Blasting Chamber
Heavy-duty chamber with manganese steel or rubber-lined wear plates and replaceable liners.
Y Conveyor System
Indexed hanger conveyor with hook capacity from 250 kg to 5 MT for controlled job movement.
Rotation Mechanism
Job rotation system operating typically between 2 to 6 RPM for uniform blasting exposure.
Abrasive Circulation System
Includes screw conveyor, bucket elevator, and air wash separator for abrasive recovery.
Dust Collector
Bag filter or cartridge type dust collector with pulse jet cleaning system.
Electrical Control Panel
PLC-based or conventional panel with operational controls and safety interlocks.
Safety System
Door interlocks and emergency stop system for operator safety.
Engineered Output Parameters
| Model | HT-250 | HT-500 | HT-1000 | HT-2000 | HT-5000 |
|---|---|---|---|---|---|
| Hook Capacity | 250 kg | 500 kg | 1 MT | 2 MT | 5 MT |
| Job Size (mm) | 800 × 1200 | 1000 × 1500 | 1500 × 2000 | 2000 × 2500 | Custom |
| Blast Wheels | 2 × 7.5 HP | 2 × 10 HP | 2 × 15 HP | 3 × 20 HP | 4 × 20 HP |
| Total Power | 20–25 kW | 30–40 kW | 50–60 kW | 80–100 kW | 120–160 kW |
| Production | 5–10 jobs/hr | 8–15 jobs/hr | 10–20 jobs/hr | 15–25 jobs/hr | Custom |
Custom Engineered Mechanism
The Y-Type (Indexing System) uses two working stations that allow loading and blasting operations to run simultaneously for better productivity. Its indexed hanger movement shifts components efficiently between stations, reducing waiting time and improving workflow.
This configuration is ideal for continuous batch processing where faster cycle times and organized material handling are important. It offers reliable automation and consistent blasting quality for regular production operations.
The Airless Shot Blasting Machine – Hanger Type Y Conveyor is an excellent solution for non-tumbling components requiring indexed automated blasting. It ensures uniform, high-quality surface finish while safely handling heavy and delicate fabricated parts.
Its modular design, controlled job movement, and proven industrial performance make it ideal for modern fabrication facilities.
