Tunnel type machine designed for plates, beams, pipes, and structures requiring single-pass cleaning. Conveyorized movement and multiple blast wheels ensure fast, uniform surface preparation.

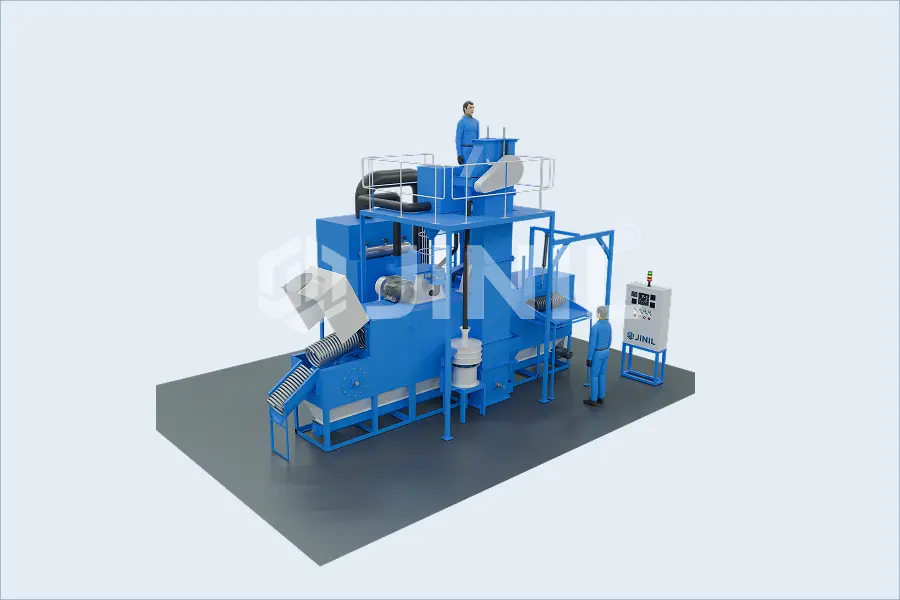

The Airless Shot Blasting Machine – Tunnel Type is a continuous, high-production system designed for cleaning long or flat components such as plates, structures, pipes, beams, and sections. Components pass through a blasting chamber on conveyors while multiple blast wheel units ensure complete surface cleaning in a single pass.
This tunnel type shot blasting machine is ideal for fabrication industries requiring uninterrupted production, fast throughput, and reliable surface preparation before painting, coating, or further processing.
Available Configurations
*Advanced machine for cold forging, railway boogie work and shot pinning needs
Smart Process Overview
Components are loaded onto the inlet conveyor and moved into the blasting chamber. Inside the tunnel, multiple high-speed shot blasting turbine units positioned at optimized angles project abrasive media onto the component surfaces.
Continuous conveyor movement exposes the entire surface to the abrasive stream for complete cleaning. For pipes or round jobs, diabolo rollers rotate the component during blasting to ensure full circumferential coverage.
Used abrasive falls into the hopper and is recovered through screw conveyors, bucket elevator, and air wash separator for reuse. Dust and fine particles are extracted through the integrated dust collector system. Cleaned components exit through the outlet conveyor ready for the next process.
Built With Precision Components
Blast Wheel Units
10 HP to 30 HP high-efficiency turbines arranged in multi-wheel configuration for complete blasting coverage.
Blasting Chamber (Tunnel)
Heavy-duty chamber with manganese steel liners and replaceable wear plates.
Conveyor System
Roller, chain, or diabolo roller conveyor systems with VFD-controlled speed.
Abrasive Circulation System
Includes longitudinal and cross screw conveyors, bucket elevator, and air wash separator.
Dust Collection System
Bag filter or cartridge type dust collector with pulse jet cleaning system.
Sealing System
Rubber curtains at entry and exit points to prevent abrasive leakage.
Electrical Control Panel
PLC-based system with safety interlocks and operational controls.
The Airless Shot Blasting Machine – Tunnel Type is ideal for continuous mass production where long and flat components require efficient blasting in a single pass. It offers high productivity, repeatable cleaning quality, and reliable automated handling.
Its easy integration with painting and coating lines makes it a preferred solution for modern fabrication plants.
Explore a wide range of industries where shot blasting plays a critical role in improving surface quality, durability, and production efficiency. From automotive and foundry to fabrication and heavy engineering, Jinil's solutions are designed to meet diverse application needs, ensuring reliable surface preparation, consistent finishing, and optimized performance across demanding industrial environments.
Complete Support Portfolio
The Airless Shot Blasting Machine – Tunnel Type is suitable for continuous blasting of long and structural components.
Shot blasting of plates and sheets
Cleaning of beams, channels, and angles
Surface preparation before painting
Pipe external cleaning
Rust and scale removal from structural parts
Pre-treatment before coating or galvanizing
Operational Performance Benefits
The Airless Shot Blasting Machine – Tunnel Type offers several operational benefits.
Advanced Engineering Highlights
Customization options are available based on production requirements.
Additional System Enhancements
Enables centralized control, real-time monitoring, and seamless automation for efficient and optimized blasting operations.
Allows speed adjustment based on production requirements, ensuring consistent blasting quality and controlled processing time.
Automates material handling to reduce manual effort, improve safety, and enhance overall productivity.
Separates contaminants from reusable abrasive media to maintain consistent performance and extend media life.
Monitors abrasive levels continuously to ensure uninterrupted blasting and stable operational performance.
Maintains optimal abrasive levels automatically, minimizing downtime and ensuring continuous efficiency.
Ensures a clean environment while preventing sparks from entering the system for improved operational safety.
Removes residual dust and abrasive from components after blasting for a clean and ready surface.
Regulates abrasive flow automatically to maintain consistent blasting intensity and optimize media consumption.
Reduces operational noise levels, improving workplace safety and ensuring compliance with noise standards.
Integrates blasting with coating processes to enable smooth, continuous production flow and improved efficiency.
It is a continuous conveyorized blasting machine used for cleaning plates, beams, pipes, sections, and structural components.
Plates, sheets, beams, channels, angles, pipes, structures, and long fabricated components are ideal for this machine.
A tunnel type shot blasting machine provides continuous production, faster throughput, and uniform blasting quality in a single pass.
Yes, machines fitted with diabolo rollers are designed for rotating and blasting pipes or round jobs.
Common abrasives include steel shot, steel grit, and other suitable industrial blasting media.
Steel fabrication, shipbuilding, oil & gas, wind energy, construction, railways, and heavy engineering industries use these systems.
Yes, it includes screw conveyors, bucket elevator, and separator systems for continuous abrasive recovery and reuse.
Yes, options such as SCADA controls, heavy-duty rollers, automatic loading systems, soundproofing, and coating line integration are available.
