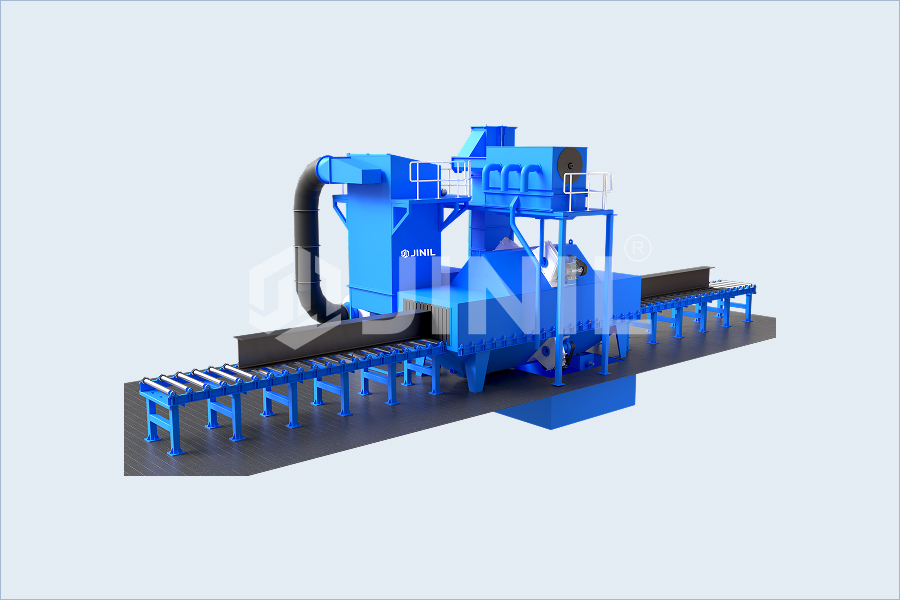

Home / Airless Shot Blasting Machines / Airless Shot Blasting Machine - Roller Conveyor Type
The roller conveyor system moves plates, beams, and structures smoothly through the blasting chamber. Continuous operation ensures fast throughput, uniform cleaning, and dependable production performance.
The Tunnel Type Airless Shot Blasting Machine is a continuous, high-production roller conveyor shot blasting machine designed for cleaning long or flat components such as plates, fabricated structures, pipes, beams, channels, and sections. It is engineered for uninterrupted production where components require efficient surface preparation in a single pass.
Components move through a blasting chamber or tunnel on a conveyor system while multiple high-speed blast wheel units project abrasive media from optimized angles. This ensures uniform cleaning, rust removal, descaling, and coating preparation with high productivity.
Available ConfigurationsFor sheet, plate, and other flat components that have a length
Smart Process Overview
Components are loaded onto the inlet conveyor and moved into the blasting chamber. Inside the tunnel, multiple shot blasting turbine units positioned at calculated angles project abrasive media at high velocity onto the component surfaces.
Continuous conveyor movement exposes the entire surface to the abrasive stream for complete cleaning. For pipe applications, diabolo rollers rotate the job during blasting to ensure full circumferential coverage.
Used abrasive falls into the hopper and is recovered through the screw conveyor, bucket elevator, and air wash separator. Clean abrasive is reused, while dust and fine particles are extracted through the integrated dust collector system. Cleaned components exit through the outlet conveyor ready for painting, coating, or further processing.
Built With Precision Components
Blast Wheel Units
10 HP to 30 HP high-efficiency turbines arranged in a multi-wheel configuration for full blasting coverage.
Blasting Chamber (Tunnel)
Heavy-duty chamber lined with manganese steel liners and replaceable wear plates.
Conveyor System
Roller, chain, or diabolo roller systems with VFD-controlled speed for different component types.
Abrasive Circulation System
Includes longitudinal and cross screw conveyors, bucket elevator, and air wash separator for abrasive recovery.
Dust Collection System
Bag filter or cartridge-type dust collector with pulse jet cleaning system.
Sealing System
Rubber curtains at entry and exit points to prevent abrasive leakage.
Electrical Control Panel
PLC-based control system with interlocks and safety features.
Custom Engineered Mechanism
The Roller Conveyor Type uses motorized rollers to move components smoothly through the blasting chamber for continuous cleaning and efficient processing. It is ideal for plates, beams, H/I sections, and structural fabrication materials requiring uniform surface preparation. This configuration is widely used for stable handling of long and heavy components.
It is the most common type due to its reliable performance and easy integration with production lines. High throughput and consistent blasting quality make it a preferred industrial solution.
The Tunnel Type Airless Shot Blasting Machine is ideal for continuous mass production requiring consistent blasting quality. It is best suited for long, flat, and structural components where fast throughput and repeatable surface preparation are critical.
Its high efficiency, multi-wheel blasting system, and easy integration with automatic coating or painting lines make it a preferred solution for modern fabrication facilities.
Explore a wide range of industries where shot blasting plays a critical role in improving surface quality, durability, and production efficiency. From automotive and foundry to fabrication and heavy engineering, Jinil's solutions are designed to meet diverse application needs, ensuring reliable surface preparation, consistent finishing, and optimized performance across demanding industrial environments.
Complete Support Portfolio
The Tunnel Type Airless Shot Blasting Machine is suitable for continuous blasting of large and long components.
Shot blasting of plates and sheets
Cleaning of beams, channels, and angles
Surface preparation before painting
Pipe external cleaning
Rust and scale removal from structural parts
Pre-treatment before coating or galvanizing
Operational Performance Benefits
The Tunnel Type Airless Shot Blasting Machine offers several productivity and operational benefits.
Advanced Engineering Highlights
Customization options are available based on production requirements.
Additional System Enhancements
Enables centralized control, real-time monitoring, and seamless automation for efficient and optimized blasting operations.
Allows speed adjustment based on production requirements, ensuring consistent blasting quality and controlled processing time.
Automates material handling to reduce manual effort, improve safety, and enhance overall productivity.
Separates contaminants from reusable abrasive media to maintain consistent performance and extend media life.
Monitors abrasive levels continuously to ensure uninterrupted blasting and stable operational performance.
Maintains optimal abrasive levels automatically, minimizing downtime and ensuring continuous efficiency.
Ensures a clean environment while preventing sparks from entering the system for improved operational safety.
Removes residual dust and abrasive from components after blasting for a clean and ready surface.
Regulates abrasive flow automatically to maintain consistent blasting intensity and optimize media consumption.
Reduces operational noise levels, improving workplace safety and ensuring compliance with noise standards.
Integrates blasting with coating processes to enable smooth, continuous production flow and improved efficiency.
A Tunnel Type Airless Shot Blasting Machine is a continuous conveyorized blasting system used for cleaning long, flat, or structural metal components in a single pass.
It is suitable for plates, sheets, beams, channels, angles, pipes, fabricated structures, and long heavy components.
A roller conveyor shot blasting machine offers continuous production, faster handling, and uniform blasting quality for long components.
Yes, machines with diabolo roller systems are designed for pipe rotation and full external blasting coverage.
Steel fabrication, shipbuilding, oil & gas, wind energy, construction, railways, and heavy engineering industries commonly use these machines.
Yes, the machine includes screw conveyors, a bucket elevator, and a separator for continuous abrasive recovery and reuse.
Yes, it can be synchronized with coating, painting, and primer application lines for automated production flow.
Yes, options such as SCADA controls, heavy-duty rollers, thickness detection, pre-heating zones, and automatic loading systems can be provided.
